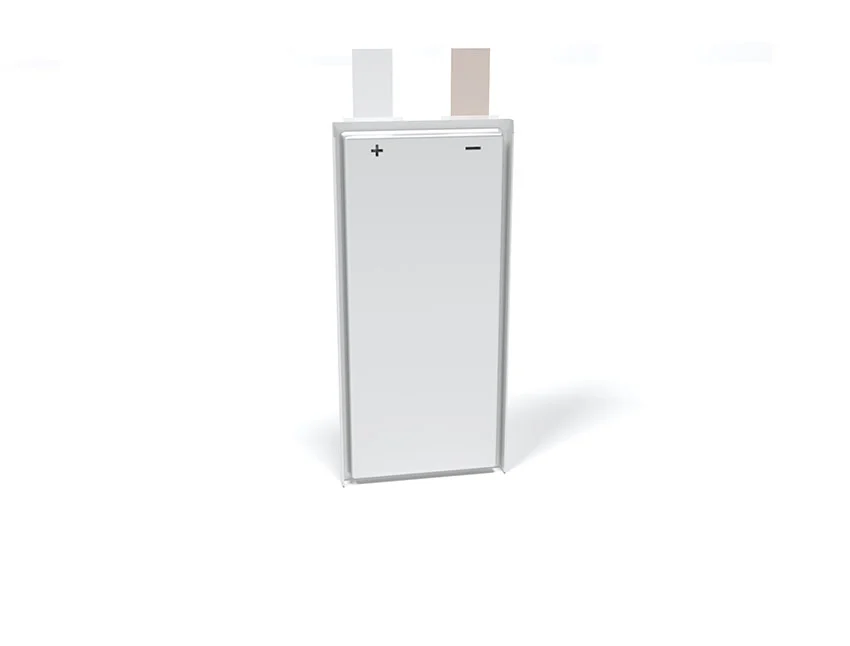

SEPFe13109314 & 14109314-50Ah NMC cell from Soundon New Energy is a type of electronic power supply for electric heavy-duty trucks.
| Items | Spec |
| Typical Capacity voltage | 3.65V17.5Ah 1C discharging (25±2 degree) |
| Charging end of voltage | 4.2V |
| Standard charging and discharging current | 0.5C |
| max continuous charge and discharge current | 1C |
| max pluse charging current | 1.5C(15-45 degree) < 30S |
| max pluse discharging current | 3C (15-45 degree) < 30S |
| Working temperature | Charging: -10~45 degree |
| Discharging :-20~55 degree | |
| Battery cell weight | 270g-310g |
 Cycle Life | 80%SOH≥2000cls |
Hige energy density
Cycle life: 2000times 80%soc
Performance: Stable in temperature of charging: 0℃~55℃, discharging: -30℃~55℃, max.90%rh
Ideal crystal structure: Stable crystal structure, small self-discharge, no memory effect of electric car battery cell
Power batteries from Soundon New Energy have high energy density and are able to store more electrical energy, it is be widely used in range of commercial vehicles, passenger vehicles, motorcycle EV truck.
