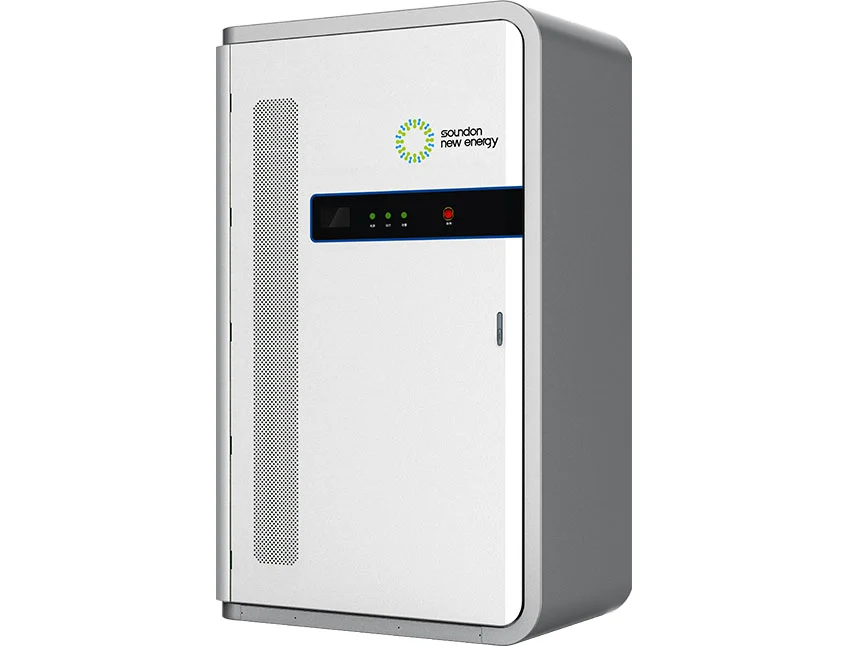

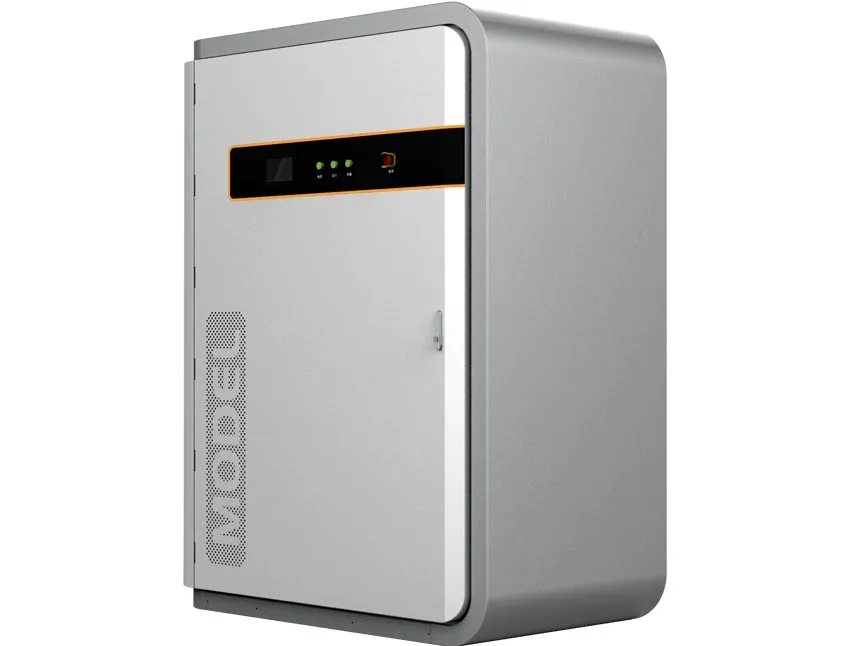

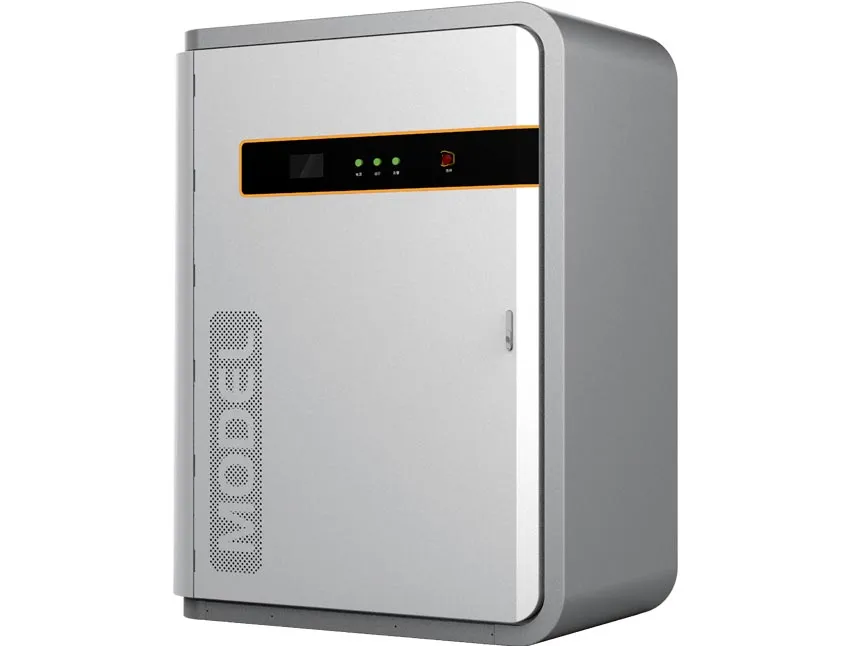

229kWh is a energy storage device with integrated battery, inverter, EMS, fire protection, electric energy measurement, cloud operation and maintenance platform. Rated power is 100kW. Norminal voltage 380Vac. It is specially developed for industrial and commercial fields, which can be plug-and-play, easy-installed. It is with air cooling system.
| Rated Capacity | 229kWh |
| Rated Power | 100kw |
| norminal voltage | 380Vac / three wire four wire |
| Max apparent power | 110kw |
| Rated output frequency | 50 HZ |
| Unbalanced load | 100% |
| IP protection level | IP55 |
| Weight | 2200 kg |
| Cooling method | air cooling |
| Noise | <65 dB(1m from the system) |
| Size | 1700*2300*1250 mm |
| Communication Interface | ethernet |
| Communication protocol | Modbus tcp |
| Warranty | 10 years |
High integration: ALL IN ONE & modular design, easy for installation and maintenance. Advanced integration technology ensures optimal system performance and lower cost.
Safe and reliable: DC electric circuit safety management includes fast-breaking and anti-arc protection. Multi-state monitoring and linkage actions ensure battery system safety. IP65 & C5 design, adaptable to harsh environments.
Efficient and flexible: Intelligent cell-level temperature control ensures higher efficiency and longer battery cycle life. Modular design supports parallel connection and easy system expansion. Supports on/off-grid operation, improves system reliability.
Intelligent and friendly: Integrated local controller, unified communication interface. Integrated energy management function. Fast state monitoring and faults record enable, pre-alarm and faults localization

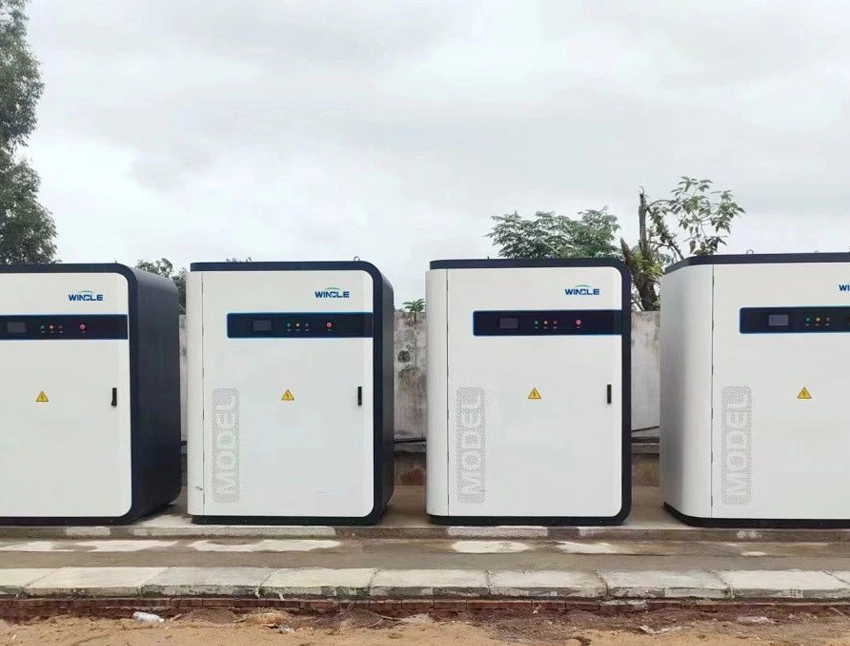

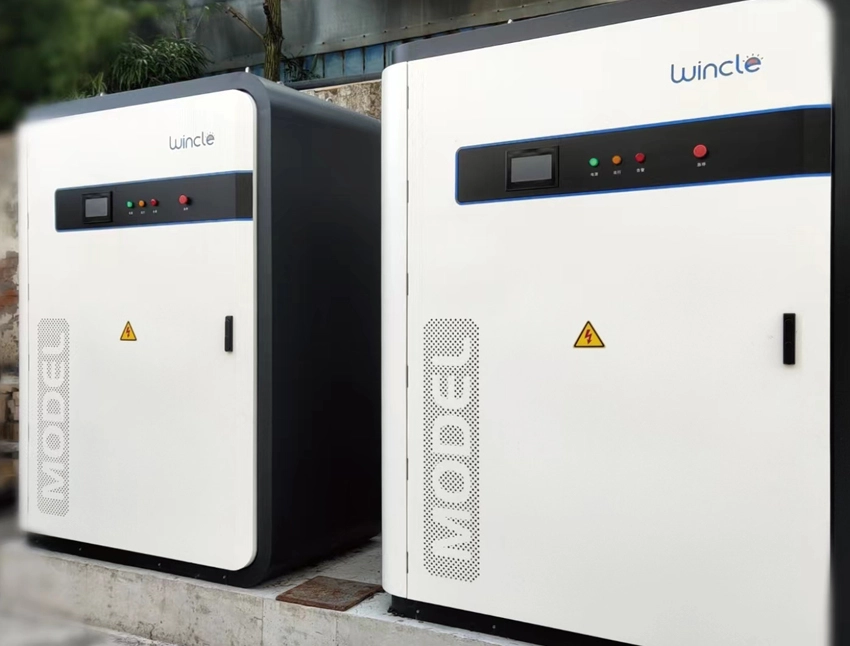

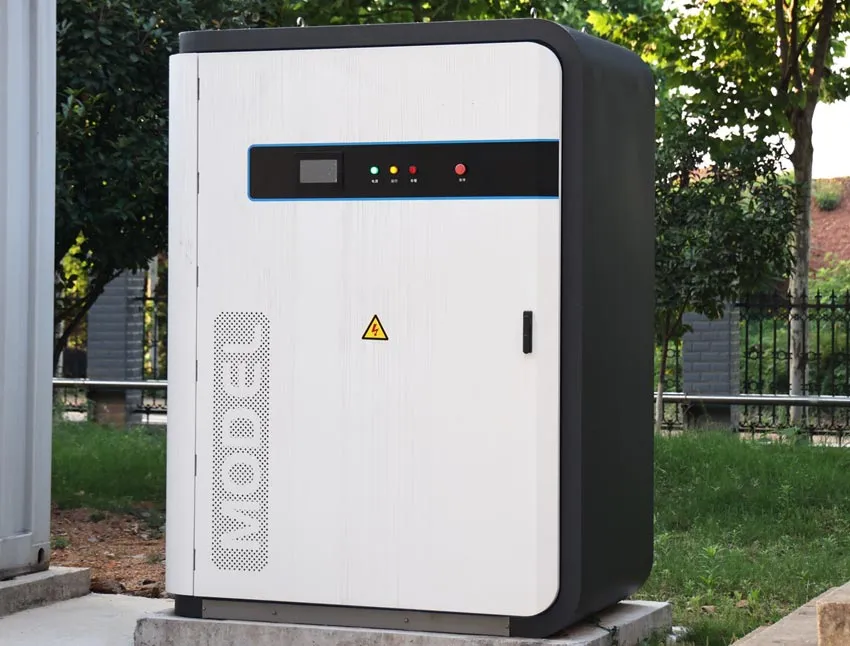

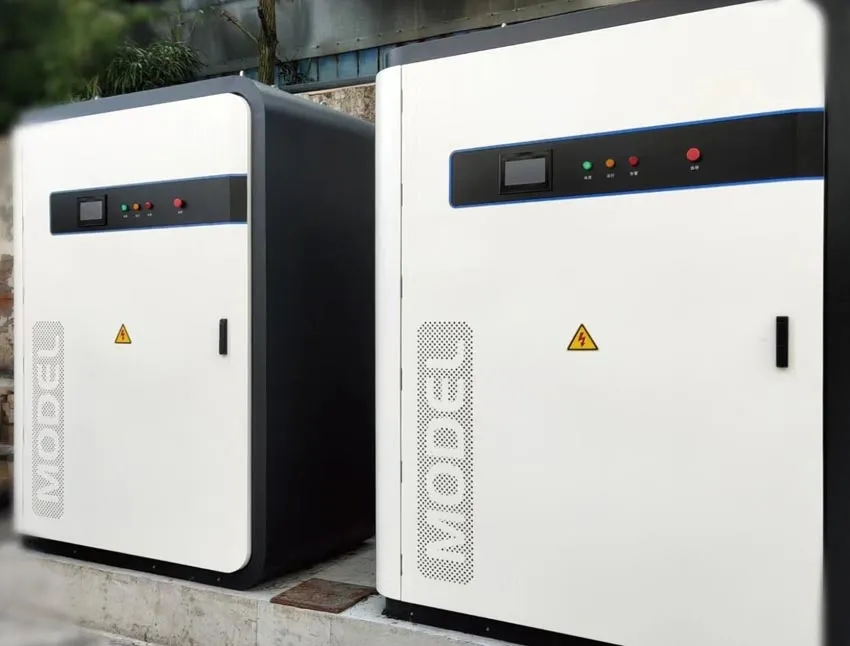

Soundon's C&I storage has been used in critical infrastructures as an uninterruptible power supply (UPS) during power failures. Hospitals, data centers and industry are now becoming increasingly interested in the multi-use application of this type of storage.
